Technology & Function

  • Disassebling

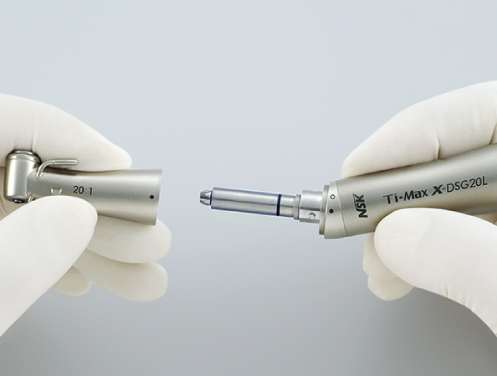

    Disassebling

    The DSG20 contra-angle can be disassembled with a simple twist for easy internal cleaning. However, when attached to a motor, it will not disassemble accidentally due to NSK's unique locking mechanism.

  • Cellular Glass Optics

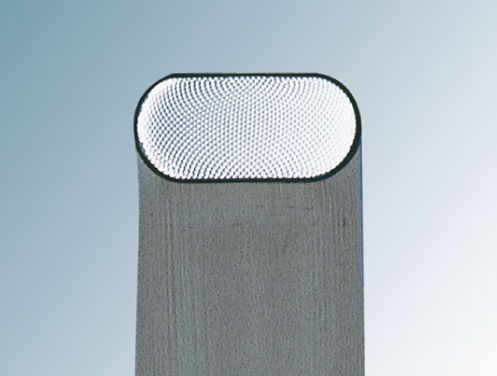

    Cellular Glass Optics

    Cellular Glass Optic delivers brilliant illumination, is highly durable and will not deteriorate due to repeated sterilisation.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

  • Double Sealing System

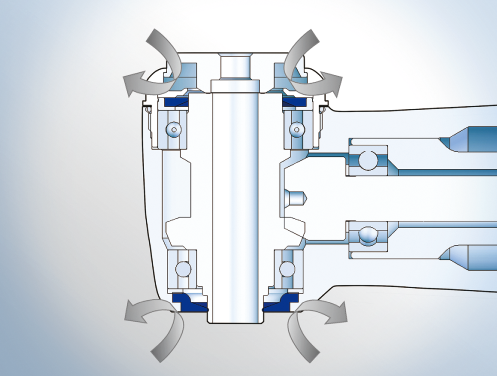

    Double Sealing System

    NSK's original double sealing system reliably prevents blood and bodily fluids from entering the instrument head. This guarantees longevity of the instruments.

  • DURACOAT
    DURACOAT

    NSK's latest surface enhancement technology, takes advantage of the non allergic and biocompatible properties of titanium to further improve durability. DURACOAT creates a smooth, scratch resistant surface which is comfortable to hold.

  • DURAGRIP
    DURAGRIP

    An ergonomic body shape and the introduction of new DURAGRIP coating provide superior grip and handling comfort.

  • Push Button Chuck

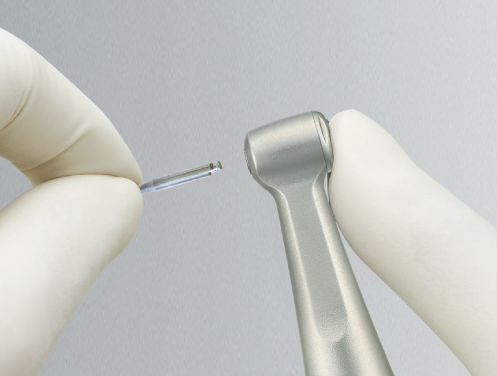

    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

Implant

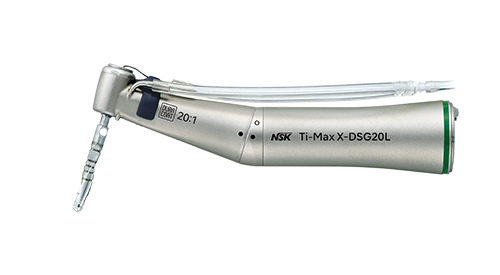

X-DSG20L20:1

  • Surgical Applications/X-DSG20L
    • Optic
    • Model:X-DSG20L
    • Order Code:C1068
    • Non-Optic
    • Model:X-DSG20
    • Order Code:C1067

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

    Lamineer tips not included

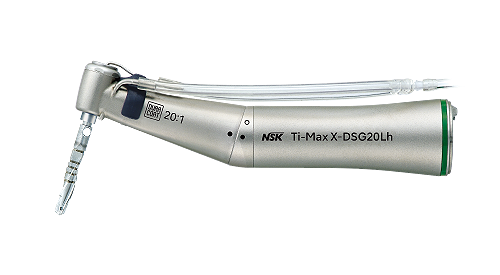

X-DSG20Lh20:1

  • Surgical Applications/X-DSG20Lh
    • Optic
    • Model:X-DSG20Lh
    • Order Code:C1076
    • Non-Optic
    • Model:X-DSG20h
    • Order Code:C1075

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Hexagon Chucking System
    • Double Sealing System

    Lamineer tips not included

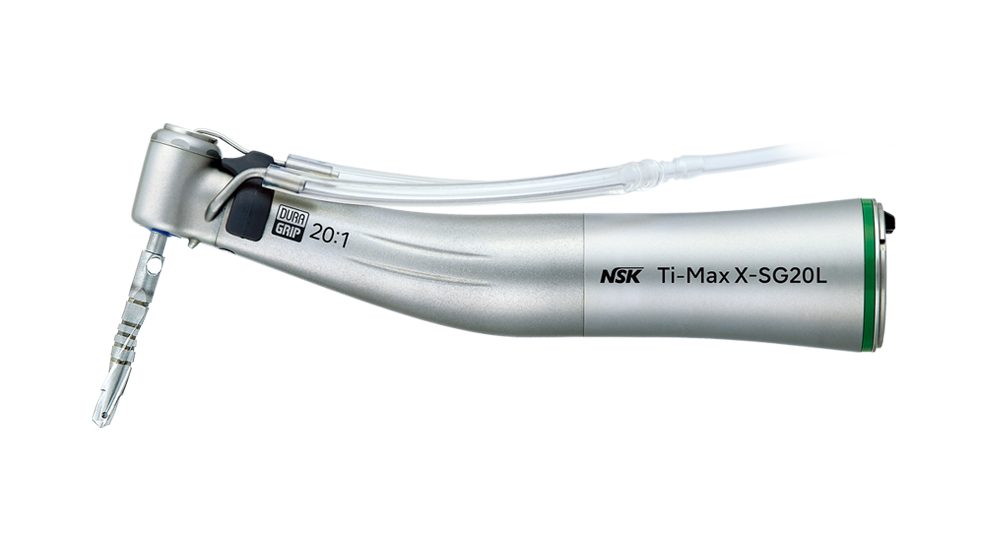

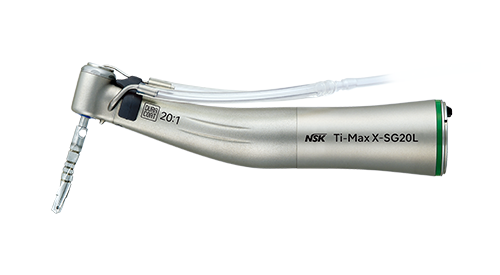

X-SG20L20:1

  • Surgical Applications/X-SG20L
    • Optic
    • Model:X-SG20L
    • Order Code:C1003

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

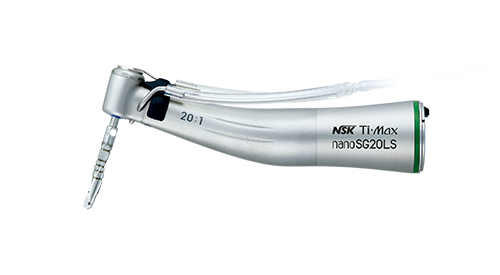

nanoSG20LS20:1

  • nanoSG20LS
    • Optic
    • Model:nanoSG20LS
    • Order Code:C1103

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

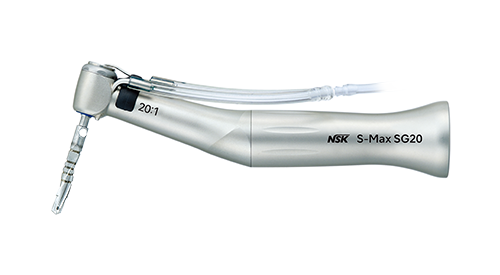

SG2020:1

  • SG20
    • Non-Optic
    • Model:SG20
    • Order Code:C1010

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Stainless Steel
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Push Button Chuck
    • Double Sealing System

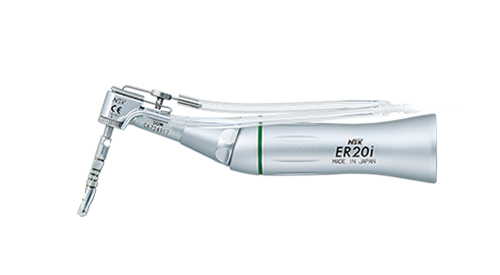

SGM-ER16i / SGM-ER20i / SGM-ER32i

  • SGM-ER16i/SGM-ER20i/SGM-ER32i
    • Non-Optic
    • Model:SGM-ER16i
    • Order Code:Y110126
    • Non-Optic
    • Model:SGM-ER20i
    • Order Code:Y110127
    • Non-Optic
    • Model:SGM-ER32i
    • Order Code:Y110128

    Specifications

    • Max Speed
    • 2,500 min-1(16:1), 2,000 min-1(20:1), 1,250 min-1(32:1)
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)

    Features

    • with Wrench for Handpiece Attachment

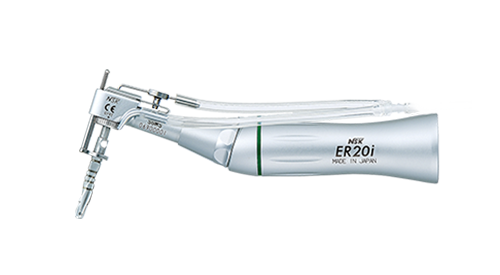

SGMS-ER20i20:1

  • SGMS-ER20i
    • Non-Optic
    • Model:SGMS-ER20i
    • Order Code:Y110147

    Specifications

    • Max Speed
    • 2,000 min-1
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)

    Features

    • Two Depth Indicators
    • Wrench for Handpiece Attachment
    • Ruler

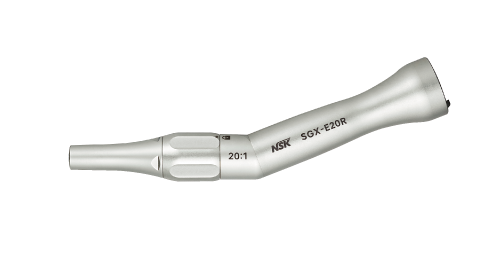

SGX-E20R20:1

  • SGX-E20R
    • Non-Optic
    • Model:SGX-E20R
    • Order Code:HA1200

    Specifications

    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 50 Ncm
    • Spray
    • External Cooling
    • Body
    • Stainless

    Features

    • Twist Chuck
    • Angle Handpiece

    For Osteotomy preparation, insertion of Zygoma implants for Maxillofacial, oral surgery

Contra-angle (Increasing)

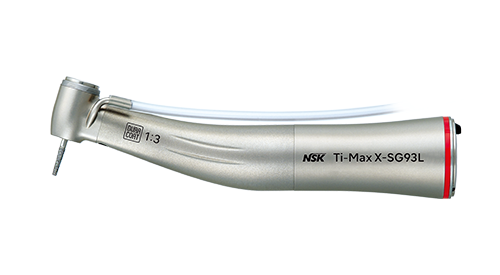

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

Z-SG45L1:3

  • Z-SG45L
    • Optic
    • Model:Z-SG45L
    • Order Code:C1107
    • Non-Optic
    • Model:Z-SG45
    • Order Code:C1108

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Head
    • 45° Angle Head
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 120,000 min-1

    Features

    • Anti Heat System
    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck

Contra-angle (Direct Drive)

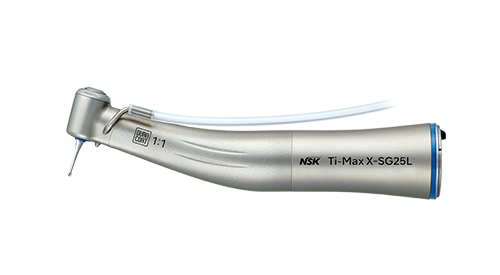

X-SG25L1:1

  • Surgical Applications2/X-SG25L
    • Optic
    • Model:X-SG25L
    • Order Code:C1011

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

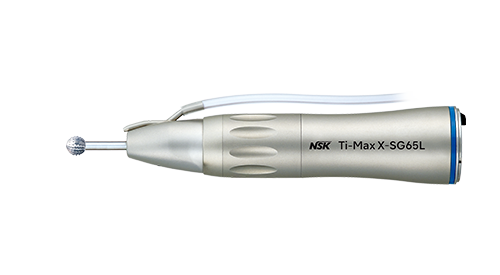

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System

Micro Surgery

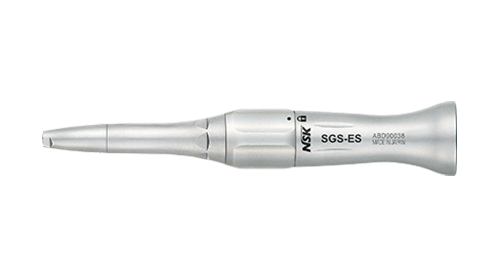

SGS-ES1:1

  • SGS-ES
    • Non-Optic
    • Model: SGS-ES
    • Order Code:H264

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

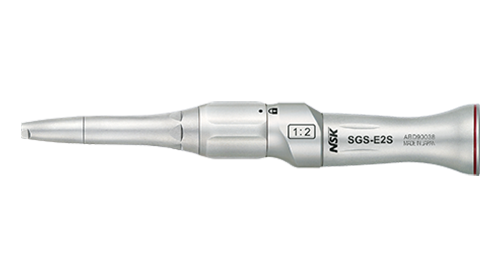

SGS-E2S1:2

  • SGS-E2S
    • Non-Optic
    • Model:SGS-E2S
    • Order Code:H266

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck

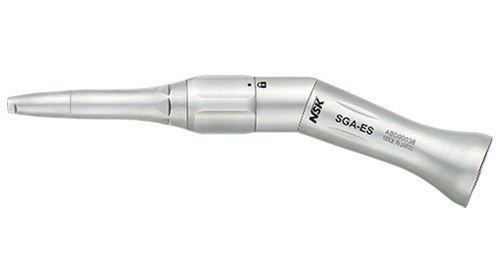

SGA-ES1:1

  • SGA-ES
    • Non-Optic
    • Model:SGA-ES
    • Order Code:H263

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

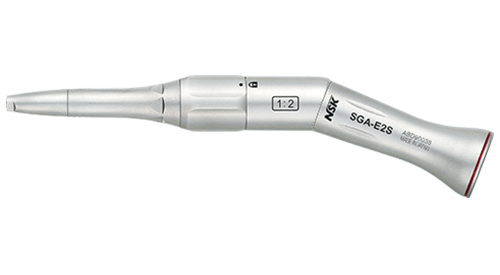

SGA-E2S1:2

  • SGA-E2S
    • Non-Optic
    • Model:SGA-E2S
    • Order Code:H265

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck

Micro Saw

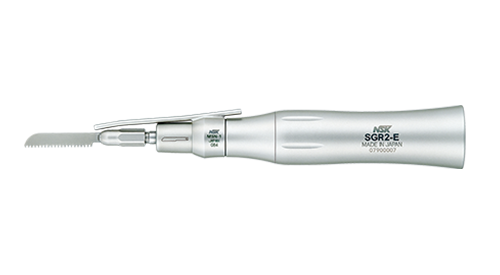

SGR2-E3:1

  • SGR2-E
    • Non-Optic
    • Model:SGR2-E
    • Order Code:SH162

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • External Spray Nozzle

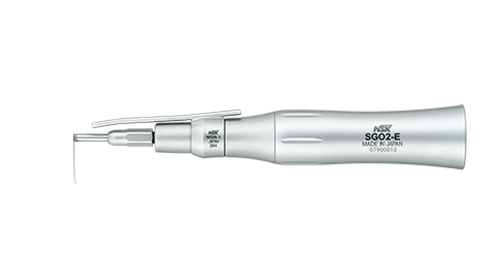

SGO2-E3:1

  • SGO2-E
    • Non-Optic
    • Model:SGO2-E
    • Order Code:SH164

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,800 Strokes / min

    Features

    • External Spray Nozzle

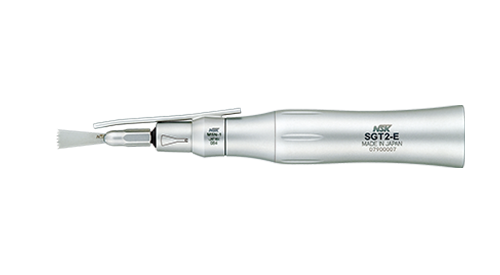

SGT2-E3:1

  • SGT2-E
    • Non-Optic
    • Model:SGT2-E
    • Order Code:SH163

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • with External Spray Nozzle

Blades for Reciprocating

  • Blades for Reciprocating
    • Model:SGR-1
    • Order Code:Y900072

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-2
    • Order Code:Y900073

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-3
    • Order Code:Y900074

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades

Blades for Oscillating

  • Blades for Oscillating
    • Model:SGO-1
    • Order Code:H174034

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-2
    • Order Code:H174044

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-3
    • Order Code:H174031

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-4
    • Order Code:H174041

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-5
    • Order Code:H174032

    Features

    • Blade Thickness 0.35 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-6
    • Order Code:H174042

    Features

    • Blade Thickness 0.35 mm
    • Single Blade

Blades for Sagittal

  • Blades for Sagittal
    • Model:SGT-1
    • Order Code:Y900075

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Sagittal
    • Model:SGT-2
    • Order Code:Y900076

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
