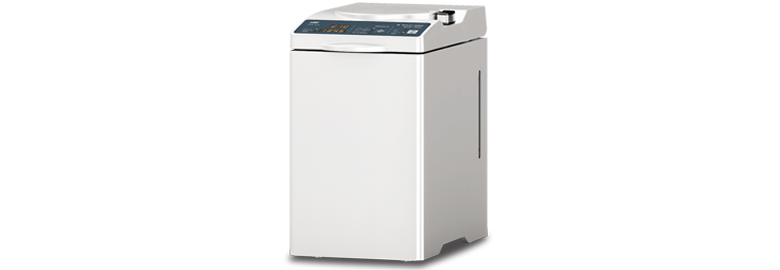

A Handpiece Autoclave Small Enough to Use Anywhere

A handpiece autoclave from a handpiece manufacturer,complying with Europe's Class S sterilization standard.
The iClave mini sterilizes eve n the invisible parts of handpieces and is completely portable to use any where.

Technology & Function

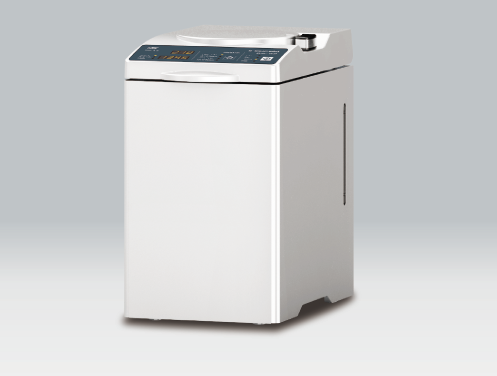

  • Small Enough to Fit in Any Space
    Small Enough to Fit in Any Space

    The iClave mini weighs only 15.5kg.
    Just plug it in and start sterilizing.
    Its compact and elegant design makes it an ideal fit for any clinic interior.

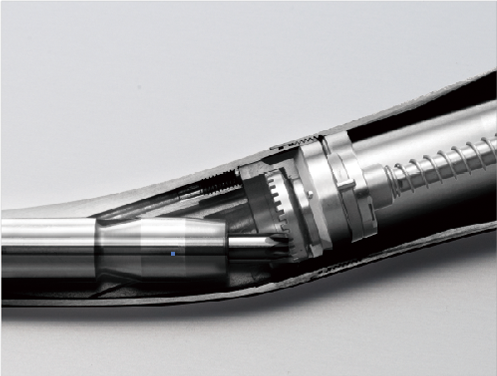

  • Effective Sterilization of Hollow Instruments
    Effective Sterilization of Hollow Instruments

    The iClave mini complies with Europe's Class S sterilization standard.
    It repeatedly de-aerates to sterilize even the inside of a handpiece.

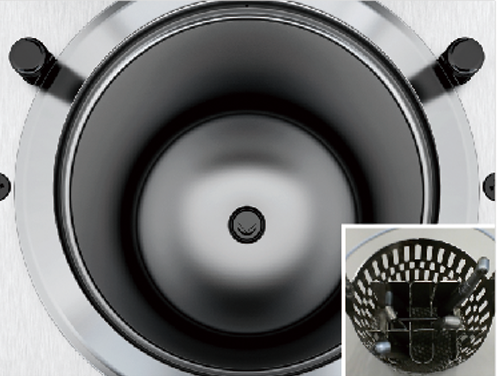

  • Fast and Compact but with Large Capacity
    Fast and Compact but with Large Capacity

    The new direct-heating technology around the 2.5litre chamber aims to work and perform like the combination of copper chamber and adaptive heat system.
    iClave mini is compact in size yet large in capacity while at the same time running fast and efficient cycles.

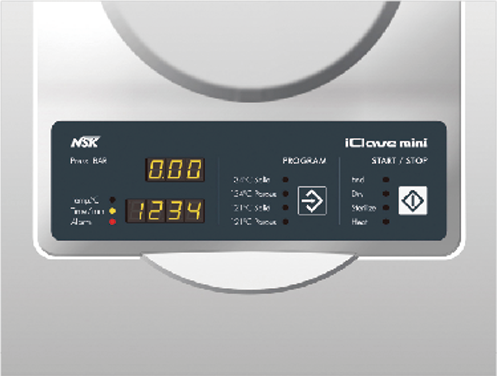

  • User-friendly, Easy to Read Operating Panel
    User-friendly, Easy to Read Operating Panel

    With a sophisticated design and excellent visibility, the panel is easy to operate and maintain, with colors changing according to conditions, enhancing sterilization reliability.

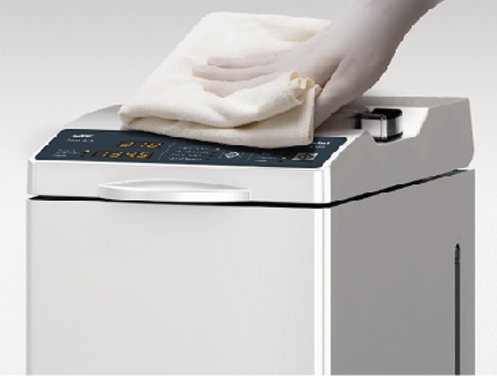

  • A User-friendly Design
    A User-friendly Design

    The iClave mini is designed with ease of use and day-to-day maintenance in mind.
    The smooth, seamless design inside and out as well as with the design of the control panel make it extremely user friendly in every respect.

iClave mini

iClave mini

  • Model: iClave mini 230 V
  • Order Code:Y1003074

Specifications

  • External Dimensions
  • W 210 x D 320 x H 360 mm
  • Chamber Dimensions
  • Ø130 x 200 mm
  • Chamber Capacity
  • 2.5 Litre
  • Net Weight
  • 15.5 kg
  • Maximum Power Consumption
  • 700 W
  • Supply Voltage CE
  • 230 V 50Hz
  • Air Expulsion System
  • Pressure Deaeration
  • Max Load Solid
  • 1 kg
  • Max Load Porous
  • 0.5 kg
PROGRAMS PARAMETERS CLASS
1 134°C SOLID 134°C 4 min S
2 134°C POROUS 134°C 14 min S
3 121°C SOLID 121°C 20 min S
4 121°C POROUS 121°C 30 min S
